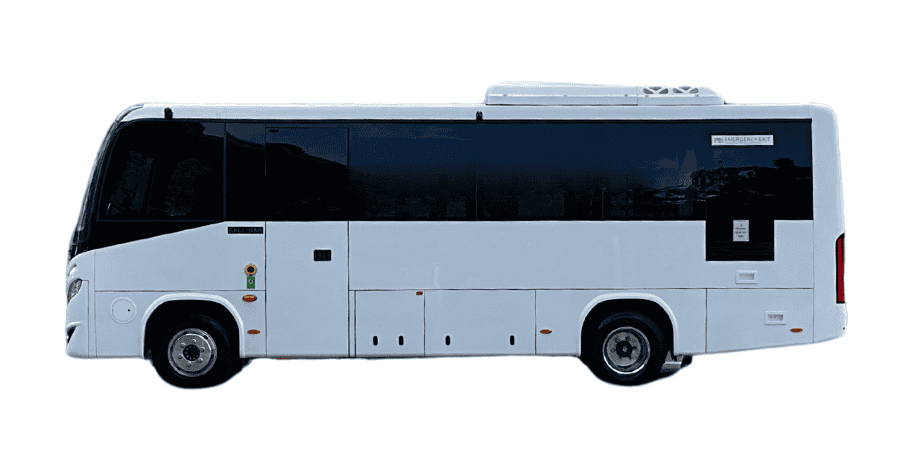

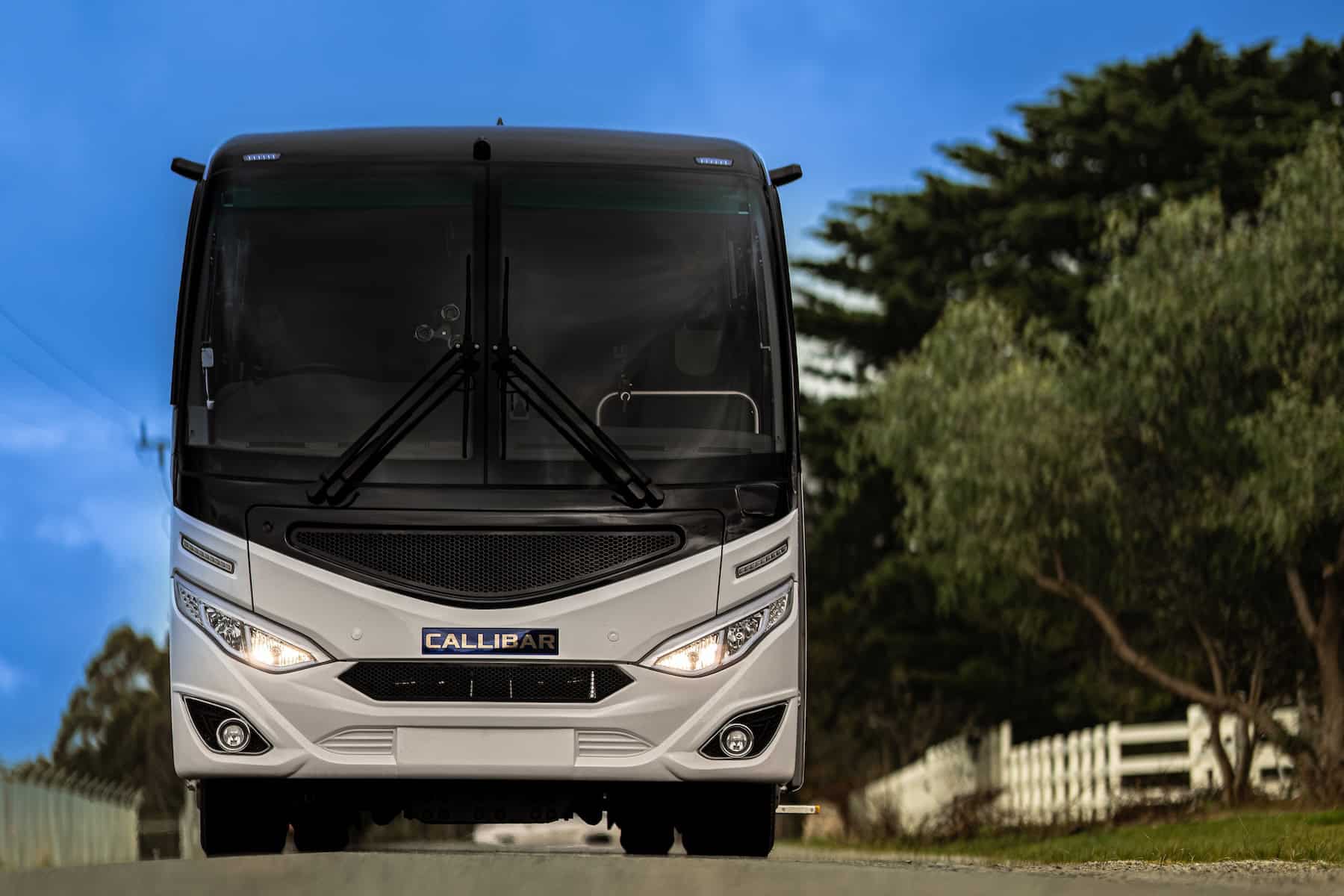

CHALLENGER
CALLIBAR
With independent front and rear air suspension, you won’t find another vehicle of the same calibre on the market.
- 19 - 28 Passengers
- LR or MR Options
- Approved TfNSW Cat 2 Vehicle
Built for today.
Engineered for tomorrow

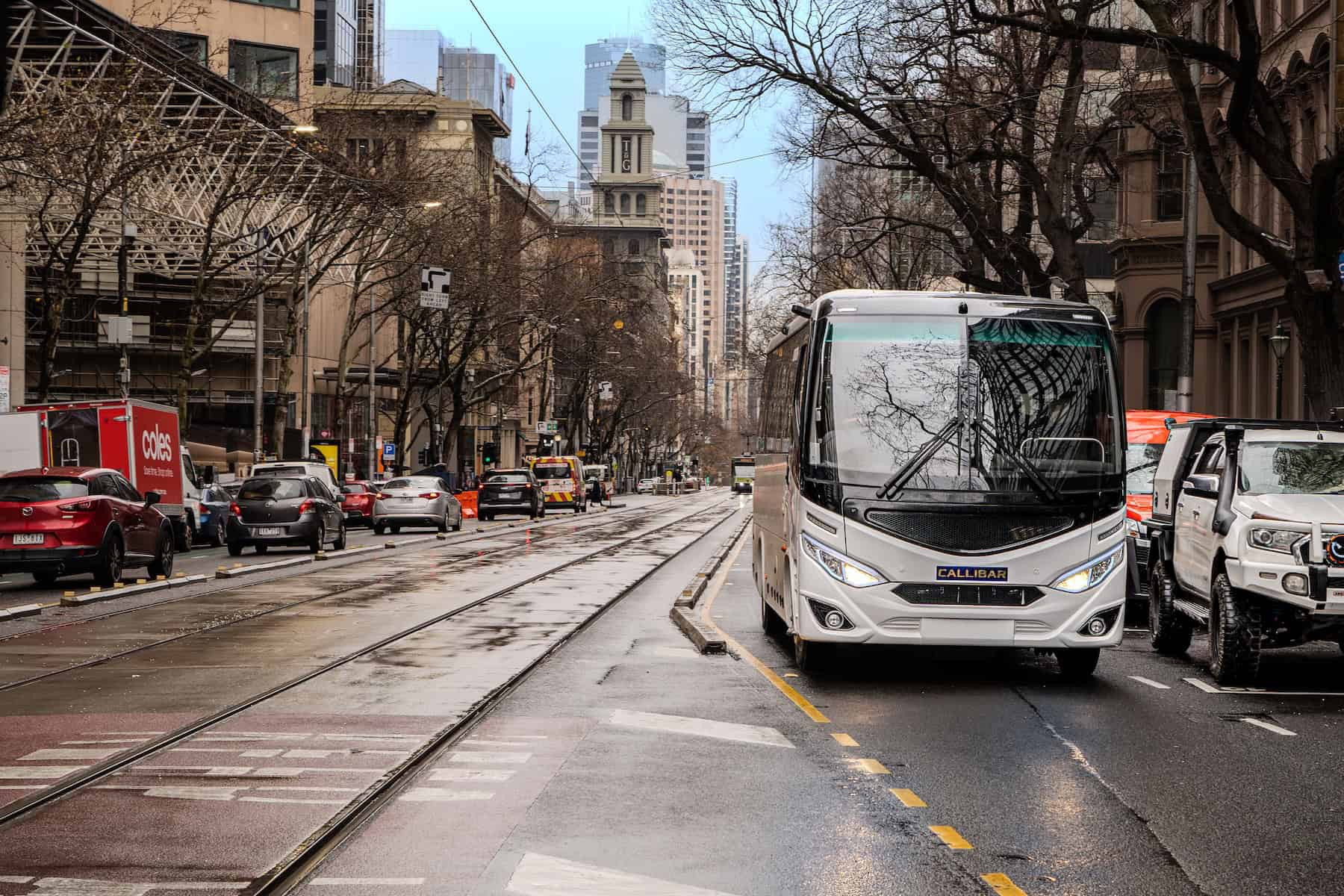

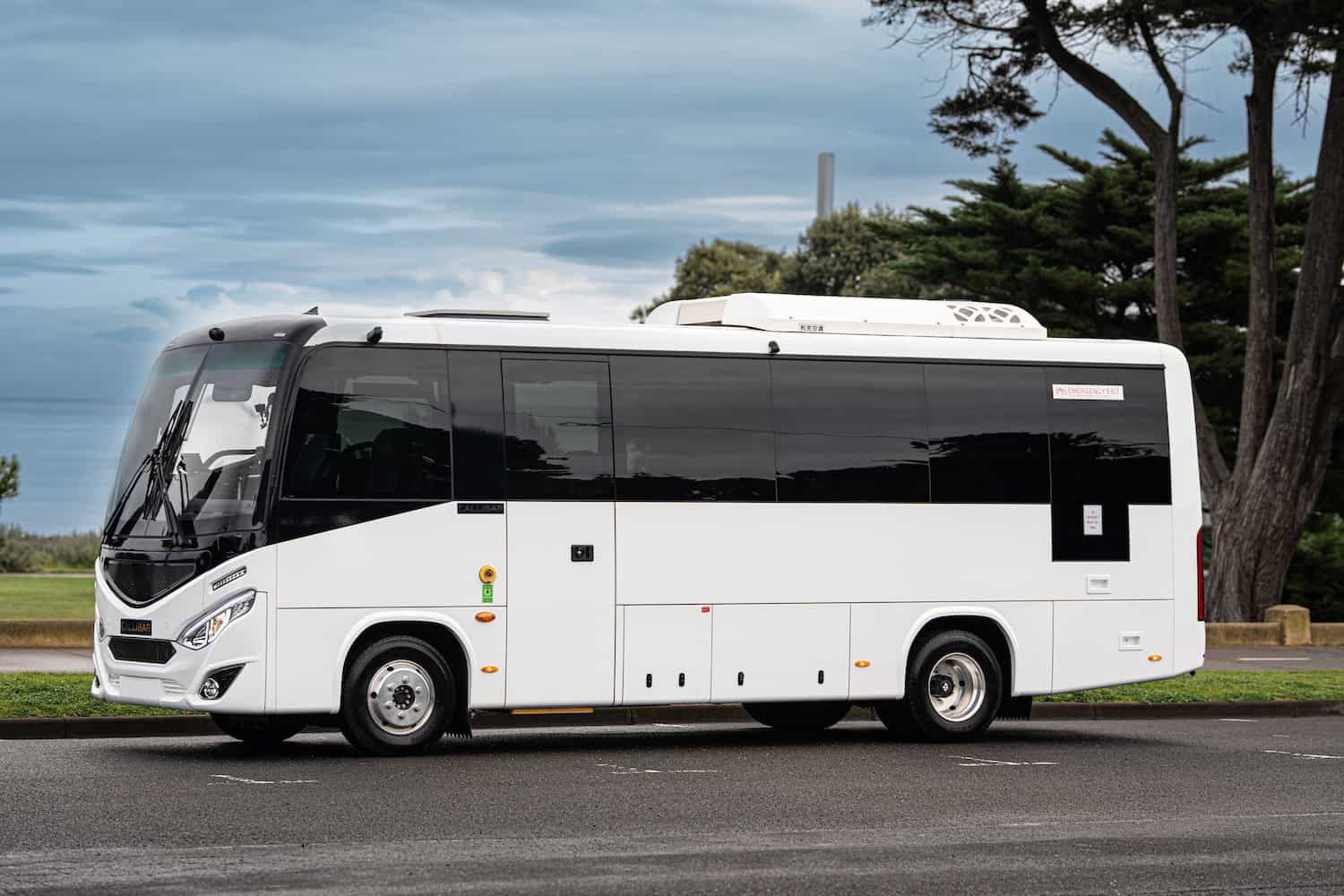

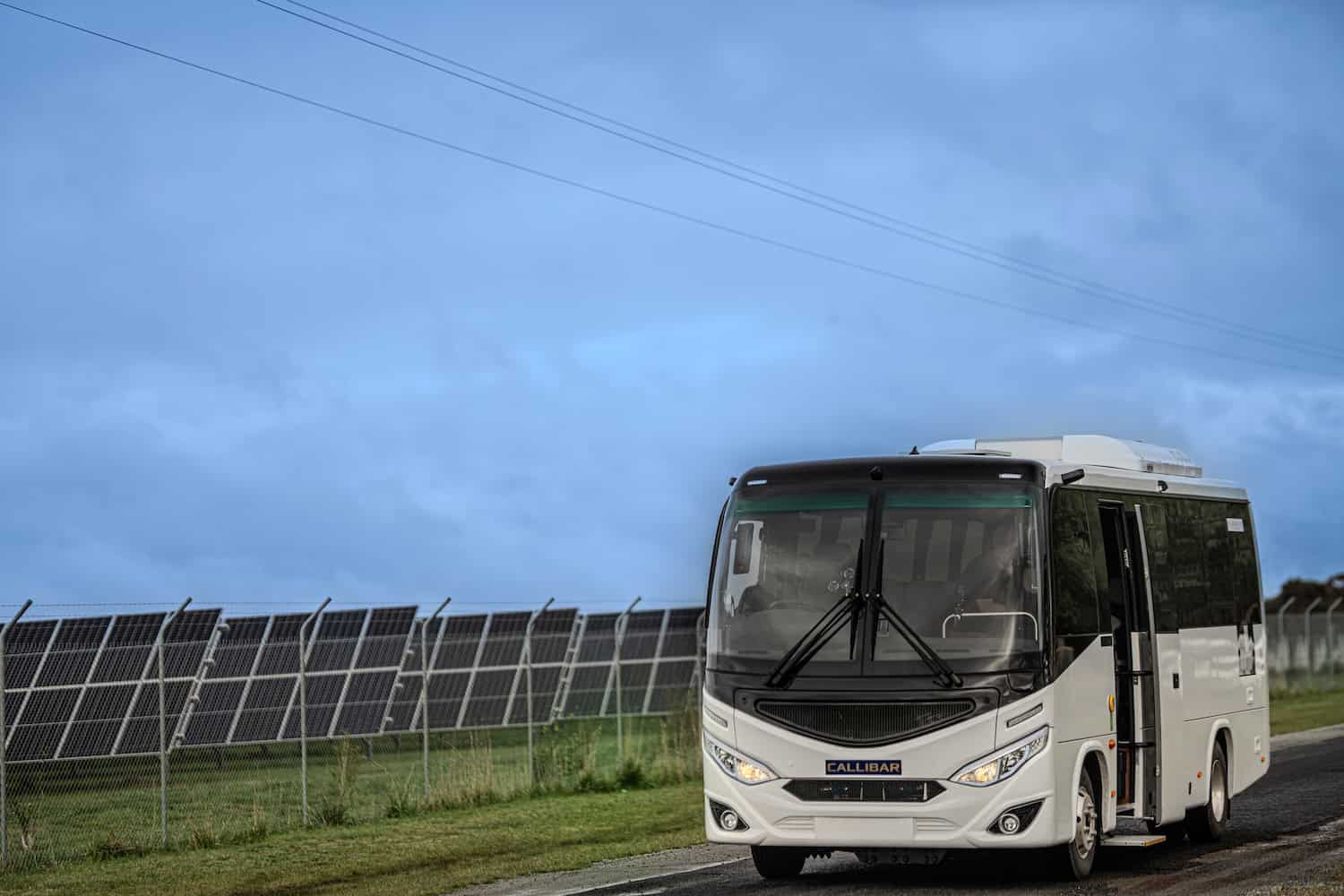

The Challenger Callibar has been engineered for operators seeking a compact vehicle without compromising on comfort, durability or performance. Ideal for community transport, charter, shuttle and school applications, the Callibar combines proven Cummins power, independent air suspension and Challenger’s stainless steel construction to deliver exceptional long-term value.
Australian
Owned & Designed
Built To Withstand Australian Conditions
Premium Components
Proven Reliability
National Support You Can Count On

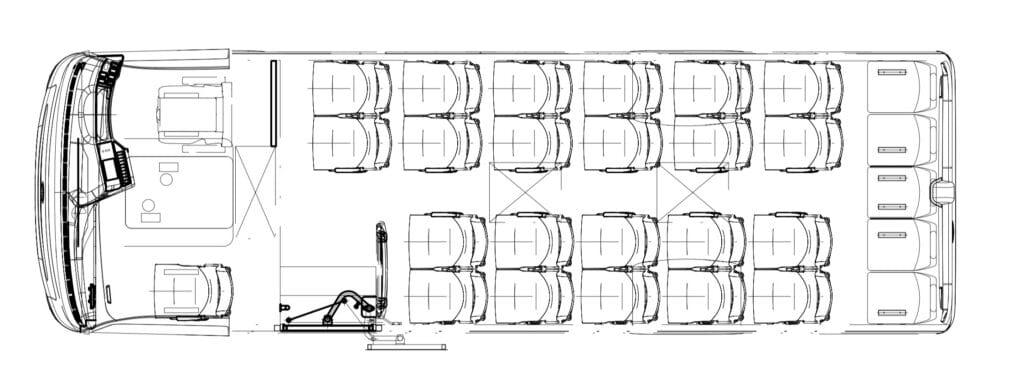

Seating Configurations
High Quality Features
Cummins ISF 3.8L Euro 6 Engine – 168HP/125kW with 600Nm torque
1 of 5 End TourStainless Steel Frame & Body Made from BSF600 stainless steel to ensure that the vehicle is built to last and withstand the harsh Australian conditions.
2 of 5 End TourIndependent Front Suspension:
Allows for a comfortable and smooth ride for both driver and passenger alike

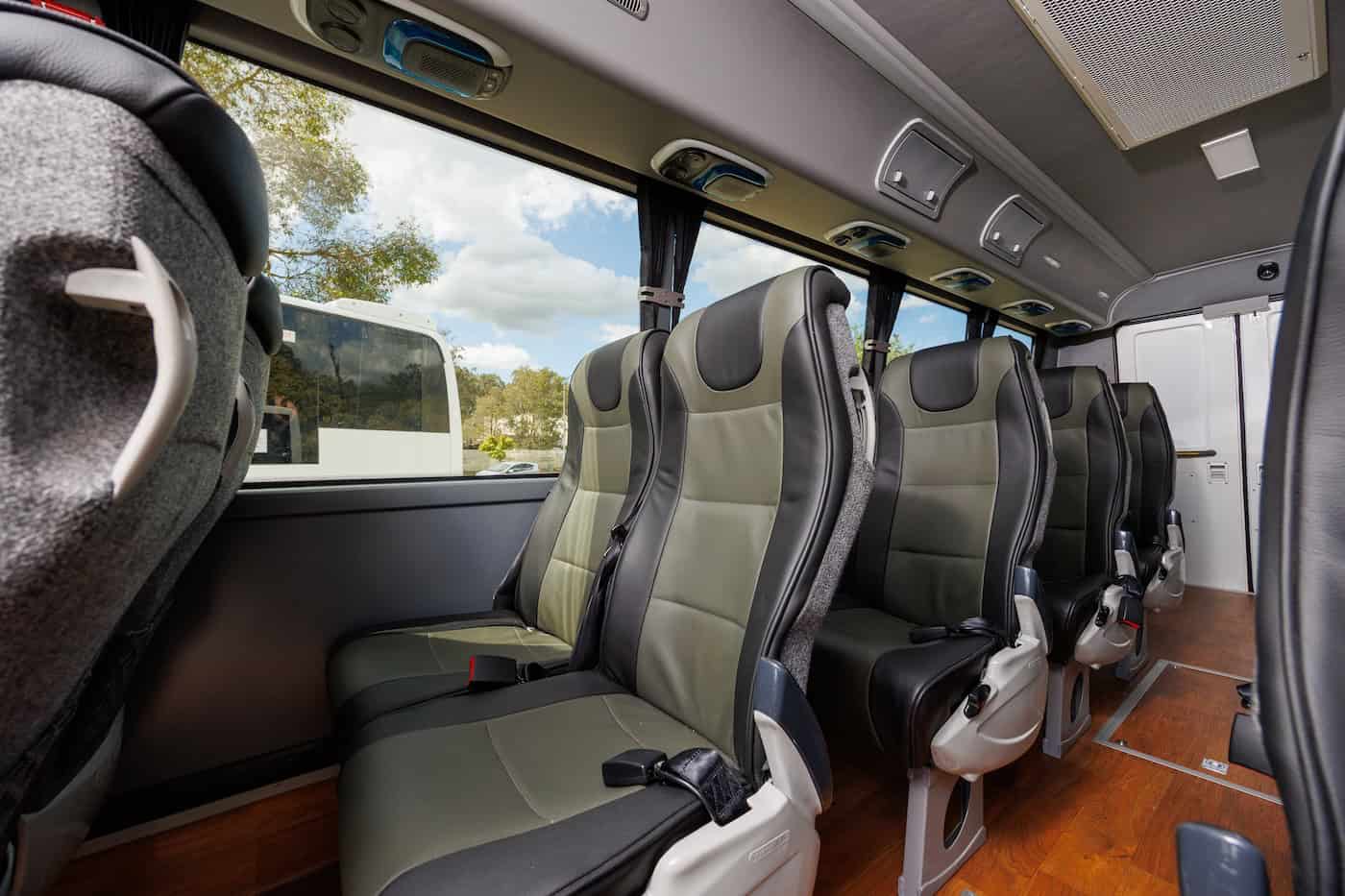

3 of 5 End Tour29 Seats – With 28 passengers premium Fainsa seats, along with 1 Grammar Air Ride seat, this vehicle is built for comfort with the passengers and driver in mind.
4 of 5 End TourIndependent Air Bag (front and rear) – Independent Rear Air Bag Suspension
5 of 5 End Tour
SAFETY FIRST
AEBS
Driver Seat Alert Vibrations

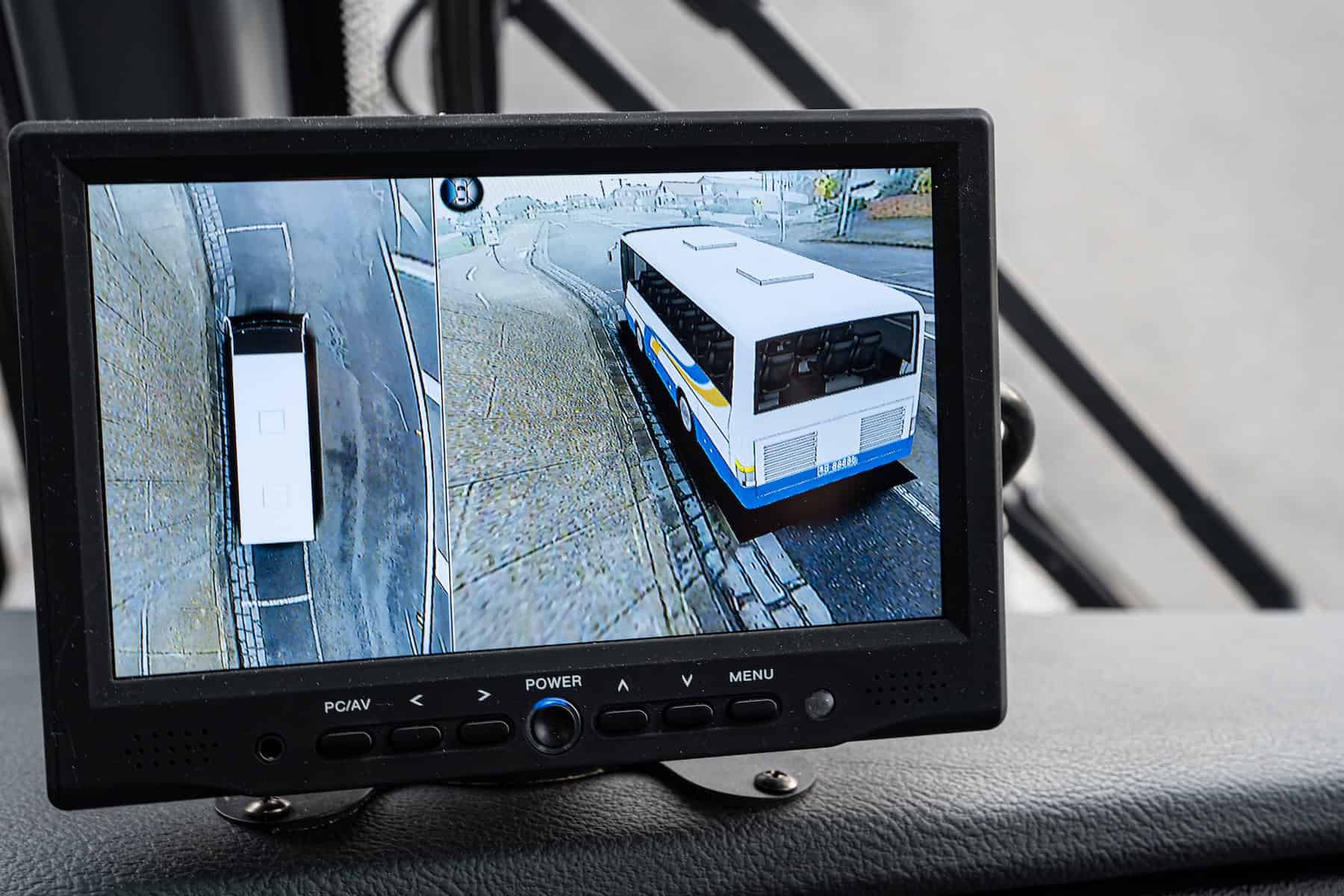

360 degree Camera Monitoring
TS160 Door
Reverse Camera
SUPERIOR COMFORT
Independent Air Suspension

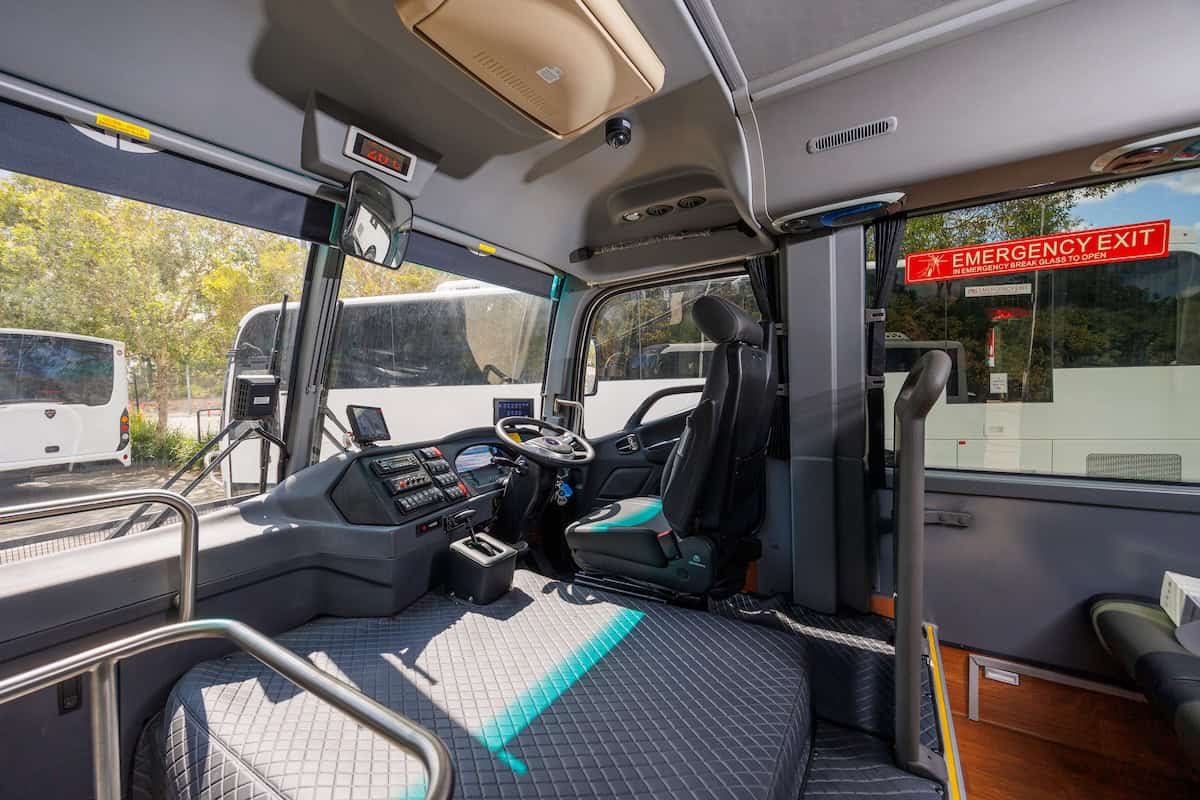

Ergonomic Dashboard
Premium Seating Options
Flexible Layouts
Powerful Climate Control
BUILT TO LAST
Stainless Steel Construction
Aluminium Panels
Corrosion Resistant
Alloy Wheels
Bullbar & Stoneguard
PERFORMANCE
Cummins 3.8L / 4.5L Engine
Automatic Push Button Transmission
Excellent Fuel Efficiency
Low Whole-of-life Costs
Fully Supported
OWENRSHIP CONFIDENCE
Nationwide Parts Support
Dedicated After-Sales Support
Comprehensive Warranty
Low Cost of Ownership

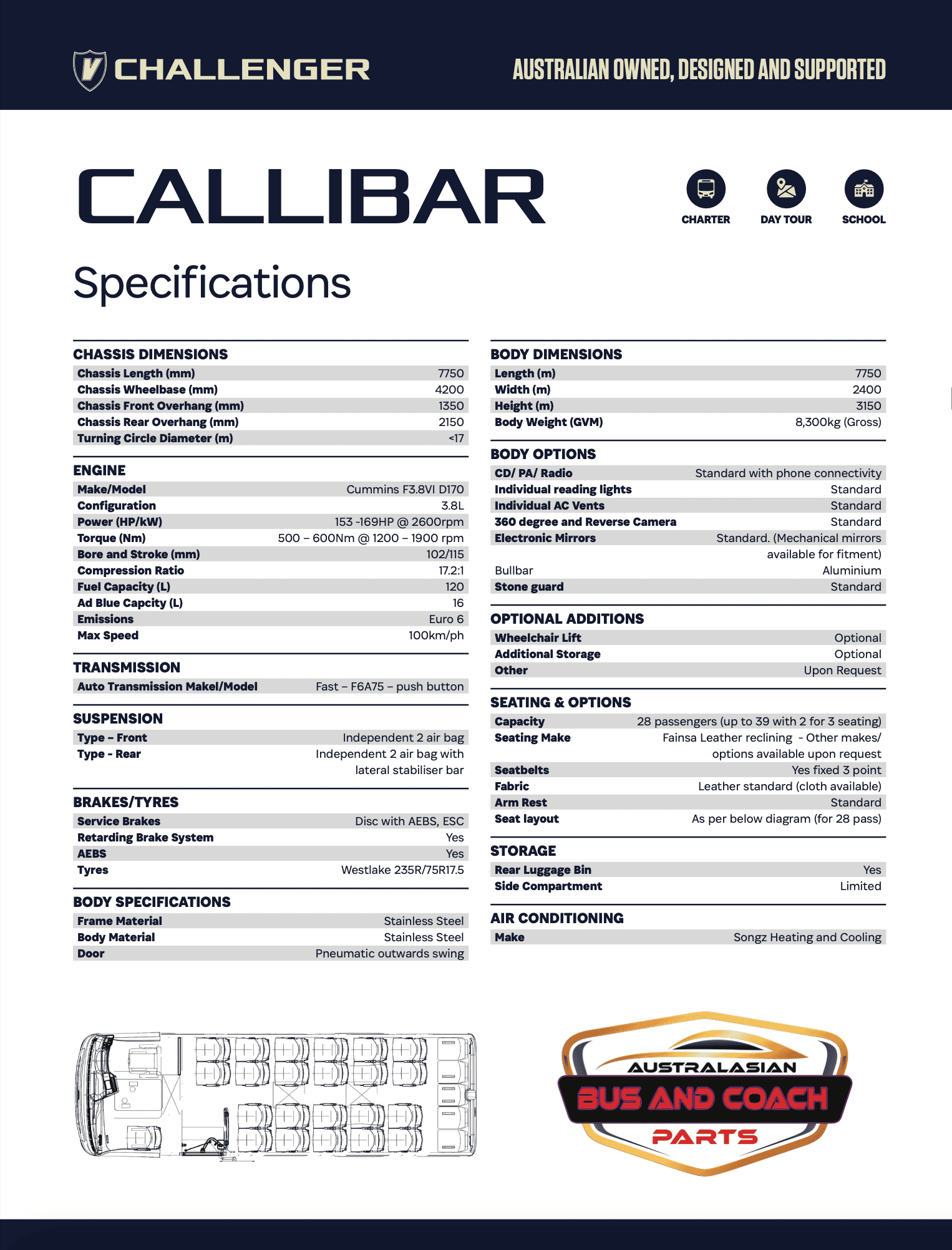

Specifications
Seating Capacity | 19-28 Passengers |
Engine | Cummins D170 ISF 3.8L or 4.5L |
Transmission | FAST 6 speed push button automatic |
Suspension | Independent Front and Rear Air Suspension |
Construction | Stainless Steel Structure, Aluminium & Composite Panels |
Fuel Capacity | 120L |
Warranty | 2 Years or 200,000kms |
Drivers Area | Grammar Air Ride Seat
|
Passenger Area
| Premium Faux Leather Fainsa Seating (or other makes upon request) 3 Point Seatbelt Individual Reading Lights and AC Vents Fold Down 19 inch TV
|
Standard Inclusions | Electronic Destination Boards Woodgrain interior PVC Flooring 4 Channel CCTV
|
Optional Additions

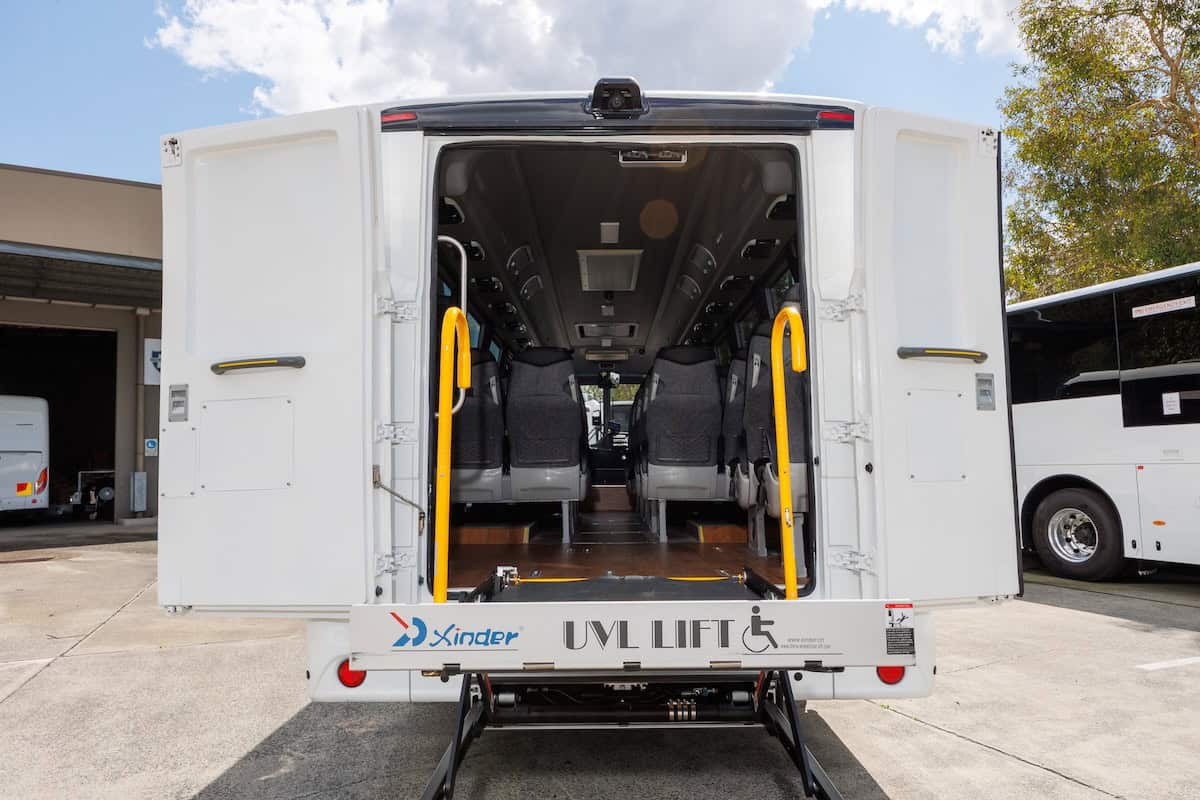

| Wheelchair Lift Larger Boot Tow Bar Alternate Layouts Seat Belt Alarm monitoring
|
Dimensions | Length Width Height Chassis Wheelbase Weight (GVM) Turning Circle | 7.75m 2.4m 3.15m 4.2m 8500kg <17m |
Engine / Transmission | Make/ Model Power Torque Bore and Stroke Compression Ratio Fuel Capacity Ad Blue Capacity Auto Transmission | Cummins D170 3.8L Euro 6 ISF 153-168HP @ 2600rpm 500-600Nm @1200-1900rpm 102mm x 115mm 17.2:1 120L 16L FAST -F675 –Push button
|
Suspension/ Brakes
| Front – Independent 2 air bag Rear – Independent 2 air bag with lateral stabiliser bar Service Disc Brakes with EBS, AEBS, ESC Retarding system fitted
| |
Axles / Tyres
| Front Independent 3.5T Westlake 235/75R 17.5 | |
Air Conditioning | Songz Heating and Cooling
| |
Materials | Stainless steel chassis (Corrosion resistant) Aluminium & Composite Panels
| |
Standard Inclusions | Bullbar Stoneguard PPG Paint Independent Air Suspensio Fold out Electronic Passenger Step Tinted Windows 2 Piece Front Windscreen Lift up Wheel Arches TS160 Passenger Door | |
Downloads
SEE THE CALLIBAR IN ACTION
Watch Australian Bus & Coach Magazine review
