Cummins ISL 360
8.9L
360hp/1550nm torque
Allison T350R 6 speed
Ferritic Stainless Steel from Stalatube Finland.
State of the art air conditioning.
Mobileye collision warning system
Vehicle tracking, Driver monitoring, live engine information and diagnostics from bus to base.

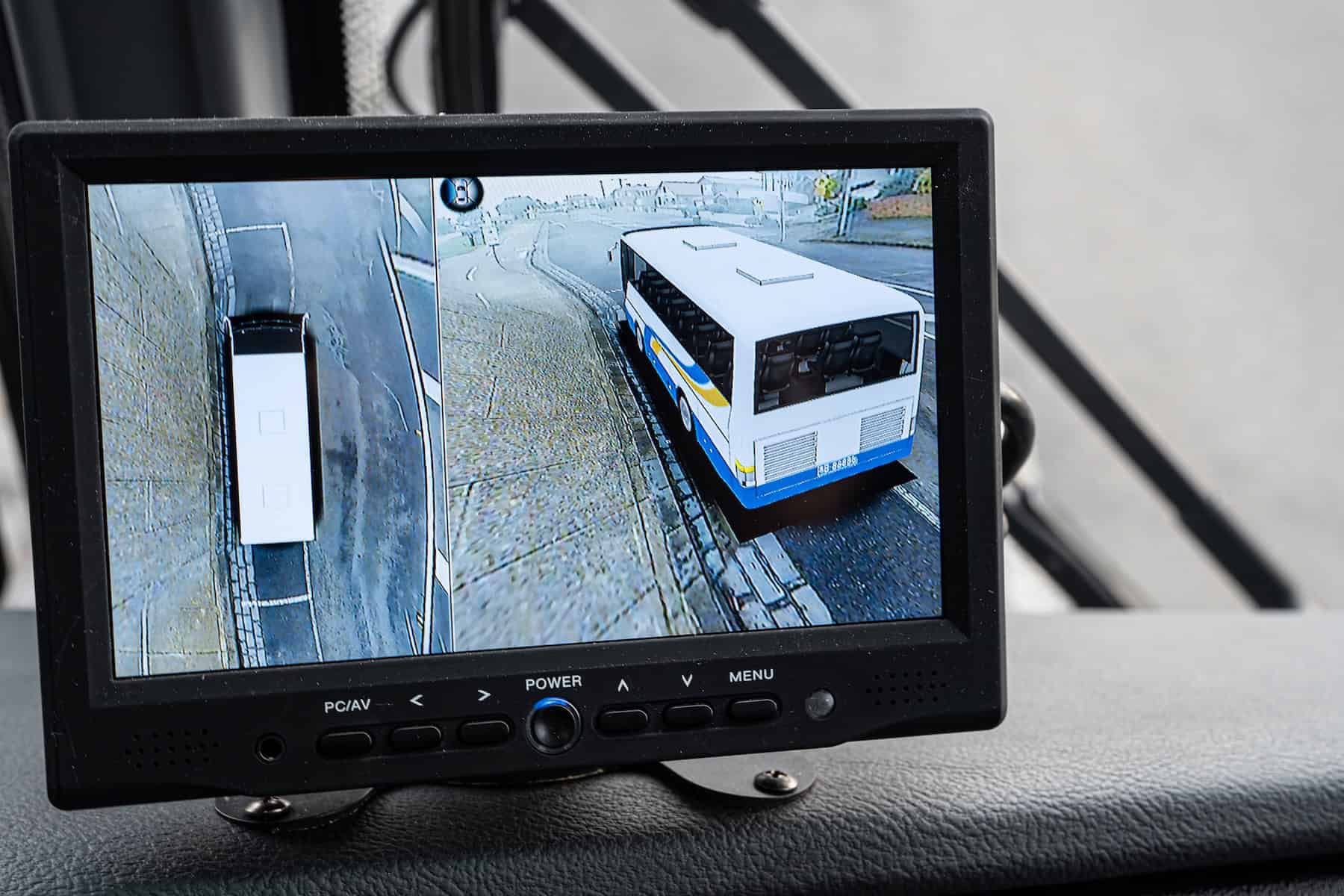

Easily see what is around the bus with 360 degree cameras's.

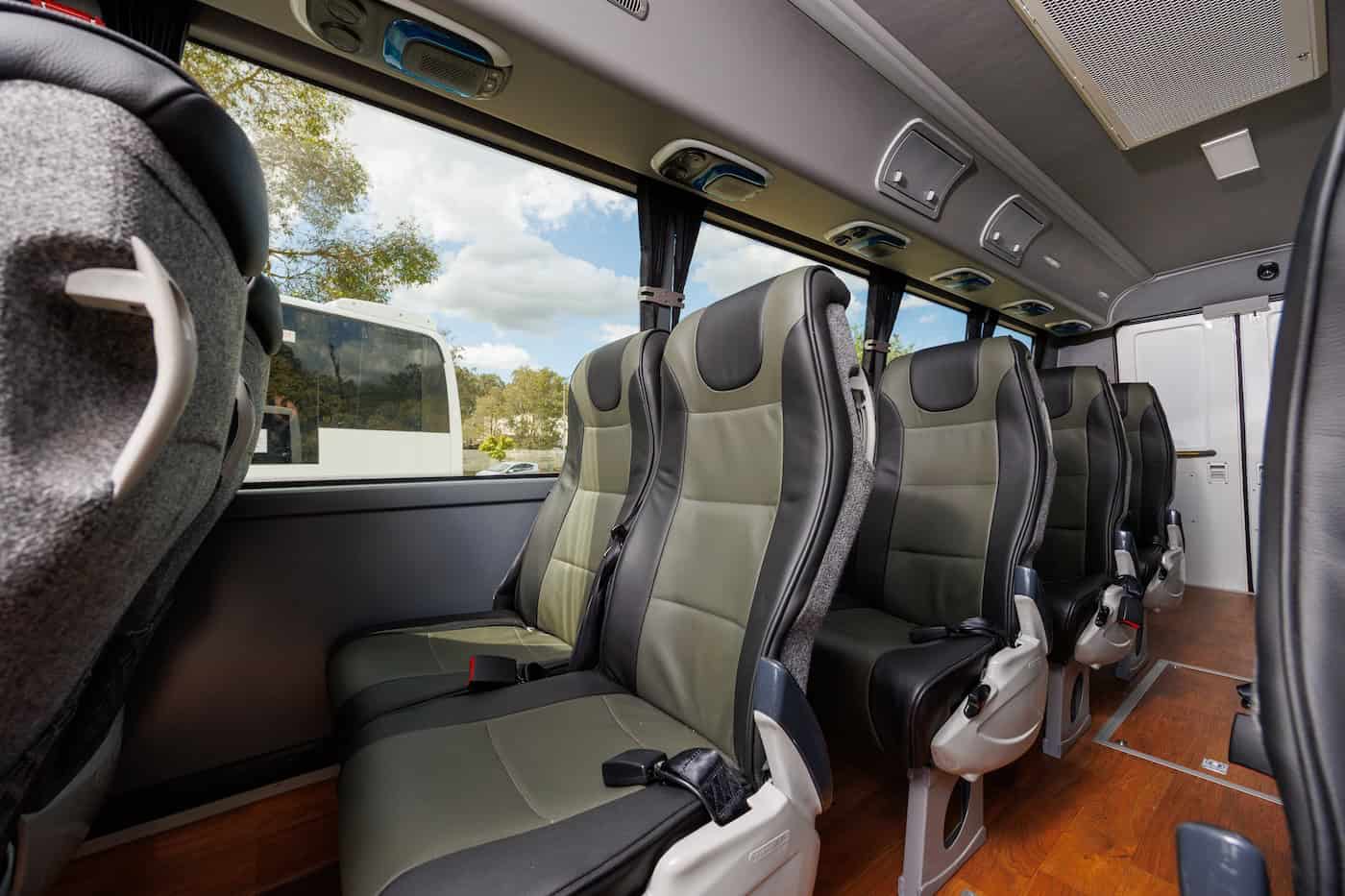

Standard belted passenger seats with various options available.
'Diamond' Alloy Wheels
PPG 2 pack exterior paint
Luggage bin doors and wheel arches open fully to ensure easy access for storage and maintenance.
Pressurised through bins coated in transport vinyl to ensure complete care of passengers baggage.

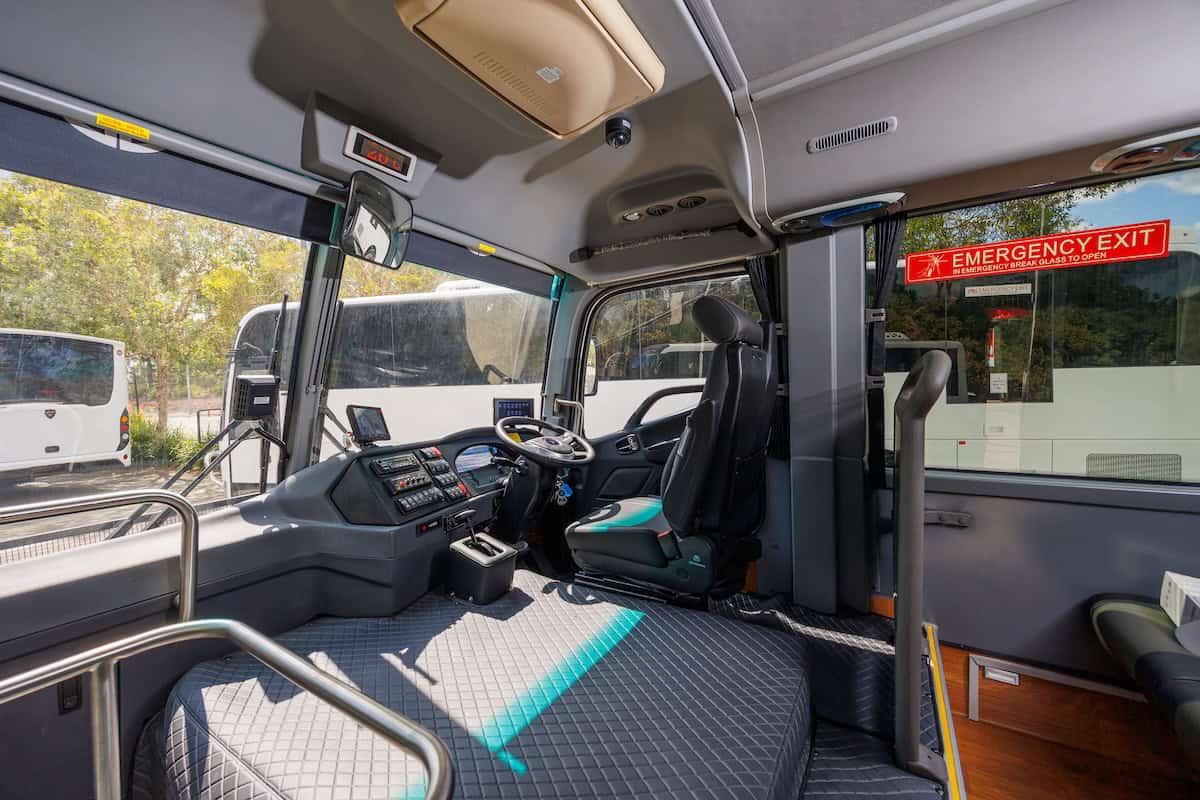

Multiple features to improve driver comfort like built in armrest, air conditioning vents, cup holders, ergonomic dashboard
Standard bullbar and stone guard
Crystal clear LCD screens & gauges for quick and easy vehicle status
24/7 Australian based phone support
| Challenger V10 | Challenger V12 | |
|---|---|---|
| Model |
|
|
| Owned by | Australian | Australian |
| Designed by | Australia | Australia |
| Support Location | Australia | Australia |
| Purpose | School / Charter / Day Tour | School / Charter / Day Tour |
| Seating Options | 43,45,47 | 53,57,68 |
| Engine | Cummins ISB 6.7L e5 | Cummins ISB 8.9L e5 |
| Transmission | Allison | Allison |
| Air Conditioning | Thermo King | Thermo King |
| Chassis material | Stalatube | Stalatube |
| Challenger V10 | Challenger V12 | |
|---|---|---|
| Chassis Dimensions: | ||
| Chassis length (metres) | NA | NA |
| Chassis Wheelbase (mm) | 5,200 | 6,550 |
| Chassis Front Overhang (mm) | 2,200 | 3,395 |
| Chassis Rear Overhang (mm) | 3,100 | 2,415 |
| Chassis Turning Circle Diameter (metres) | 19 | 22 |
| Engine: | ||
| Make / Model | Cummins ISB6 7e5 300 | Cummins ISL 360 |
| Configuration | 6.7L | 8.9L |
| Power (HP / kW) | 300/NA | 360/NA |
| Torque (Nm) | 1045NM/2000 RPM | 1550NM/1100 - 1500 RPM |
| Bore & Stroke | 107/124 | 114/145 |
| Compression Ratio | 17.3:1 | 16.6:1 |
| Fuel Capacity (litres) | 400L | 400L |
| AdBlue Capacity (litres) | 80L | 80L |
| Oil Capacity (litres) | 27 litres | 27 litres |
| Emissions | Euro 5 | Euro 5 |
| Transmission: | ||
| Auto Trans Make / Model / Description | Allison T350R 6 Speed | Allison T390R 6 Speed |
| Manual Trans Make / Model / Description | N/A | N/A |
| Suspension: | ||
| Type - Front | Two independent air suspension | Two independent air suspension |
| Type - Rear | Front air spring controlled electronic | Front air spring controlled electronic |
| Brakes: | ||
| Service Brakes | Disc | Disc |
| Retarding Brake System | Yes | Yes |
| EBS | Yes | Yes |
| Body Dimensions: | ||
| Body Length (metres) | 10.5 | 12.36 |
| Body Width (metres) | 2.5 | 2.5 |
| Body Height (metres) | 3.6 | 3.6 |
| Body Floor Height (mm) | 335 | 335 |
| GVM (kg) | 15,500 (gross) | 18,000 (gross) |
| Body Options: | ||

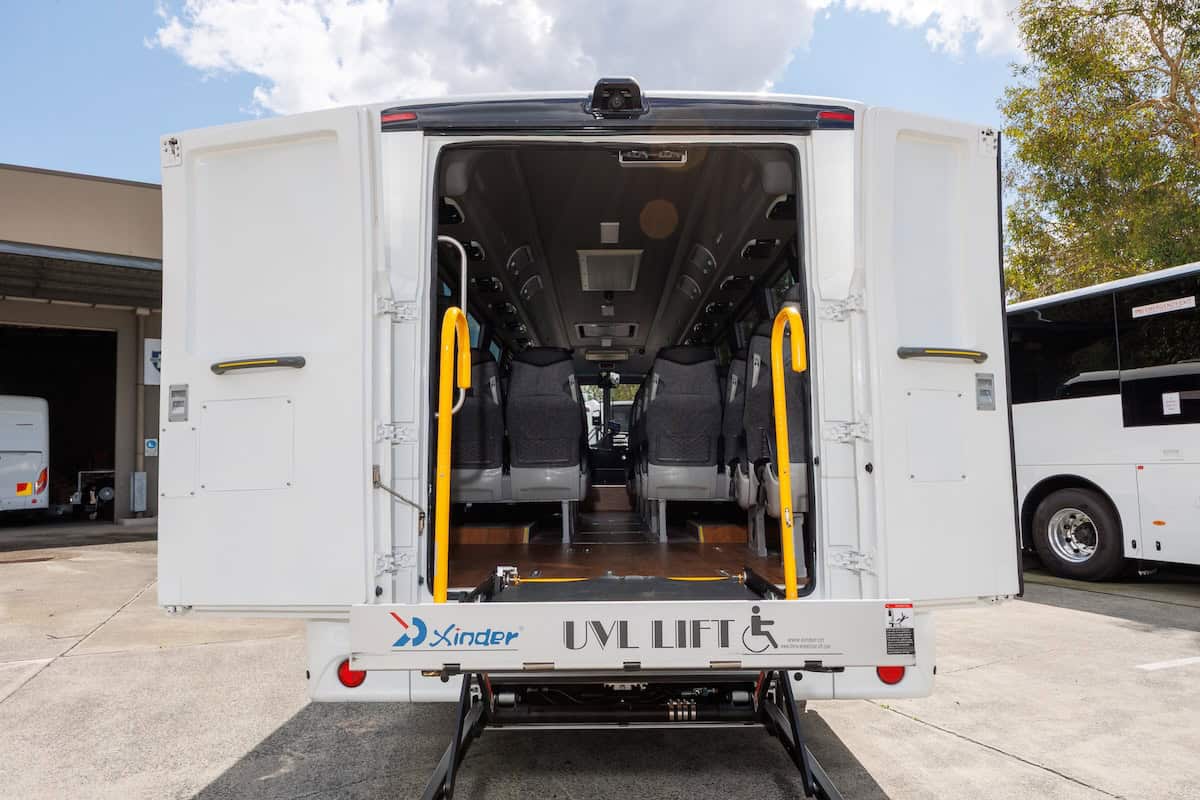

| Wheelchair Lift Access | On request | On request |
| CD/PA/Radio | Yes | Yes |
| DVD/TV | Yes | Yes |
| Toilet | On request | On request |
| Individual Reading Lights | Yes | Yes |
| Individual AC Vents | Yes | Yes |
| Reverse Camera | Yes | Yes |
| Additional Options | On request | On request |
| Seating: | ||
| Seating Capacity | Up to 62 | Up to 83 |
| Passenger Capacity | Up to 45 | Up to 57 |
| Fixed Coach | Fixed Coach | Fixed Coach |
| Seating Options: | ||
| Seating Make | Fainsa / Styleride | Fainsa / Styleride |
| Seating Model | Various | Various |
| Seatbelts | Yes | Yes |

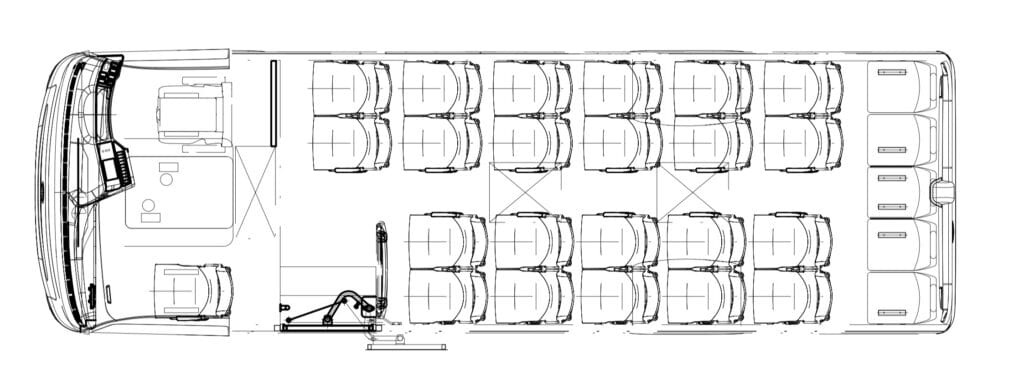

| Seat layout | as per customer request | as per customer request |
| Axles: | ||
| Front Make / Model / Desc. | JB Independent | ZF RL 75E |
| Rear Make / Model / Desc. | Meritor | ZF A132 |
| Storage: | ||
| All types | Through Bin | Through Bin |
| Pressurised Bins | Yes | Yes |
| Air Conditioning: | ||
| AC Std | Yes | Yes |
| AC Make | Thermo King | Thermo King |
| AC Model | CS1000 | CS1100 |
